480×360 Pix AV IN FPV Goggles Mini 2 Inch Binocular Screen 48 Channels

Name: 480360 Pix AV IN FPV Goggles Mini 2 Inch Binocular Screen 48 Channels
Brand: ENMESI
Price: 1 USD

China 480×360 Pix AV IN FPV Goggles Mini 2 Inch Binocular Screen 48 Channels wholesale

Brand Name : ENMESI

Model Number : F6

Certification : CE, ROHS, FCC,CCC

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union etc

Supply Ability : 10000pcs/month

Delivery Time : 7 work days

Packaging Details : gift box packaging.Micro USB cable(1meter)，charger(5V, 1A), user manual, warranty card, cleaning cloth, 2*rod antennas, gain 8dBi, clothing bag, headband,

Screen Size : 2"

Channel : 48 channels

Screen Material : TFT LCD

Resolution : 480*360

Contact Now

Mini 2 Inch Binocular Screen FPV Glasses 480×360 pix AV IN FPV Drone Goggles

The following links are similar products:

https://mao.ecer.com/index.php?r=product/edit&pid=11735458

https://mao.ecer.com/index.php?r=product/edit&pid=11743375

FPV, known as the "first person view", is a new way to play a screen-control model based on a remote-controlled aviation model or a vehicle model with a wireless camera backhaul device.

The general remote control model is a remote control by the manipulator holding the remote control, looking at the distant model to control its posture, complete a variety of actions. But how can we be more exciting and authentic? With the miniaturization of electronic devices in recent years, we have had the opportunity to install wireless video transmission devices on models with very limited volume and load, enabling the first way to manipulate the model from the first perspective. The effect is that you can be physically able to manipulate your model plane or car from the driver's point of view and soar into the sky and soar on the ground without worrying about any risk.

Product Details

Screen Size	2 inch
Material	TFT LCD
Resolution	480*360
FOV	Field of view: 0/120 degrees (horizontal/vertical)
Power consumption	1.5W-2.2W
Frequency	5.8GHz,48CH
IPD	60-68mm(Adjustable)
Battery	3.7v 1000mAh Li-ion

Product Features

300cd/㎡of High brightness,for Outdoor.

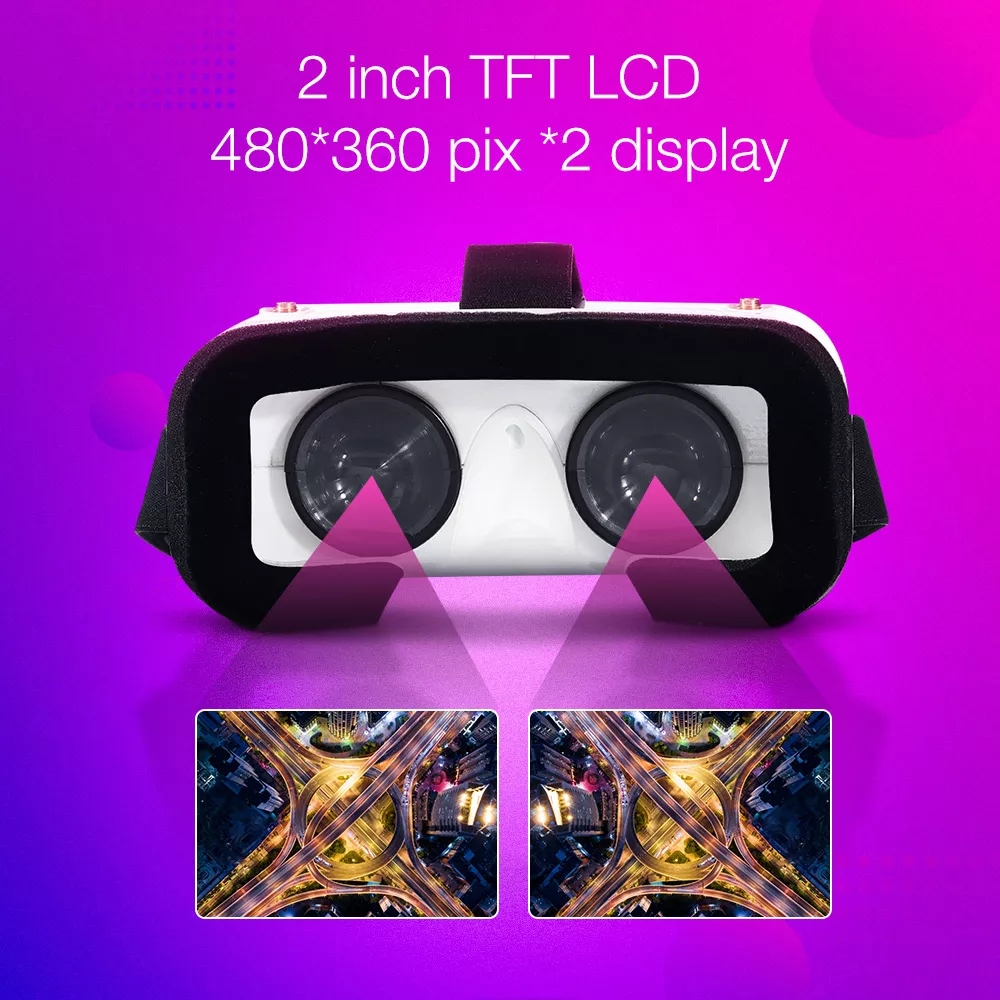

F6 goggles offer a TFT LCD 2 inch 480*360 binocular screen.
Ergonomic design, small size and light weight, comfortable to wear.
Equipped with 48 channel automatic scanning diversity antenna receiver and built-in 1000mAh rechargeable lithium battery, cost-effective.
F6 adjustable pupil distance ( IPD: 60-68mm)
The delay is extremely short, the reception range is wide, the watch video is clear and smooth.
0/120 (Vertical/horizontal) angle of view range, large screen enjoyment.

User Manual

F6_DVR User manual.docx

48 Channel

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band-A	5645	5665	5685	5705	5885	5905	5925	5945
Band-B	5740	5760	5780	5800	5820	5840	5860	5880
Band-C	5725	5745	5765	5785	5805	5825	5845	5865
Band-D	5733	5752	5771	5790	5809	5828	5847	5866
Band-E	5658	5695	5732	5769	5806	5843	5880	5917
Band-F	5362	5399	5436	5473	5510	5547	5584	5621

Our services

We can provide samples, samples can be sent out very soon.
We can open new mold for your own design.logo,frame.etc
Different models for your reference.
We provide perfect solution for customers according to your requirement such as the size, the color of the frame.
Your inquiry related to our products or prices will be replied in 24 hours.
For our Active shutter glasses,we have 1 year warrenty.
We will protect your sales area, idea of design and all your private info.
ENMESI support small order orders! Welcome to order!
